P044AA00
Petzl - Jag Haul System

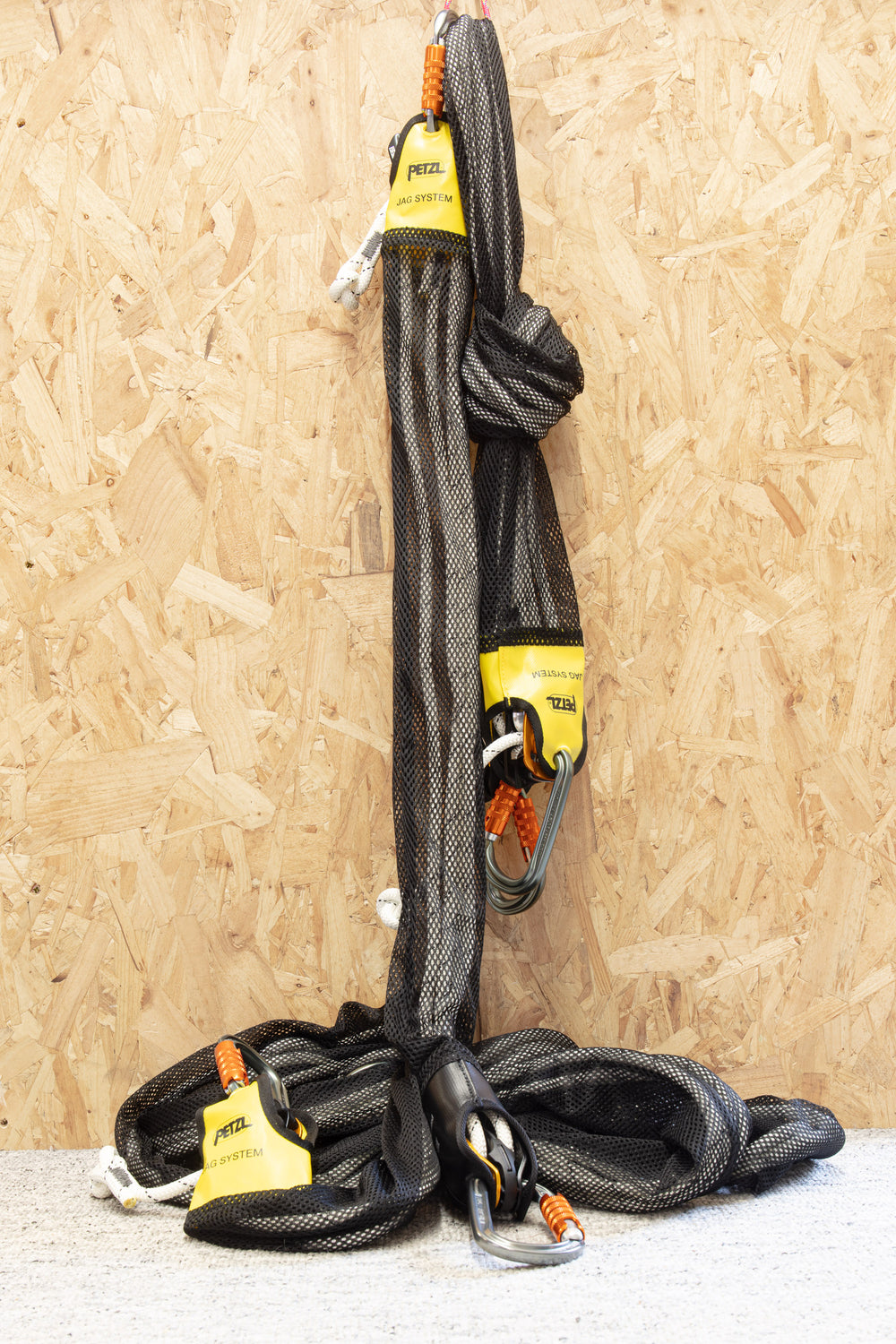

The Petzl JAG Haul system is a compact package integrating a 4:1 haul system in a quick to connect unit. It can be used for tensioning systems when placed inline, a pick off rescue component and a variety of other tasks.
Contained within a mesh outer there is no tangling of rope or components.
Short closed length means it can be used in low head room situations.
Colour-coding ensures correct orientation
Semi-rigid end covers ensure connecting Am'd Triact Lock connectors are correctly positioned.
The Petzl JAG Haul system is a compact package integrating a 4:1 haul system in a quick to connect unit. It can be used for tensioning systems when placed inline, a pick off rescue component and a variety of other tasks.
Contained within a mesh outer there is no tangling of rope or components.
Short closed length means it can be used in low head room situations.
Colour-coding ensures correct orientation
Semi-rigid end covers ensure connecting Am'd Triact Lock connectors are correctly positioned.
| Weight | Deployed Length | Collapsed Length | Working Load | Breaking Strength | Efficiency | Sheave Type | Rope Diameter | Conformity | |
|---|---|---|---|---|---|---|---|---|---|

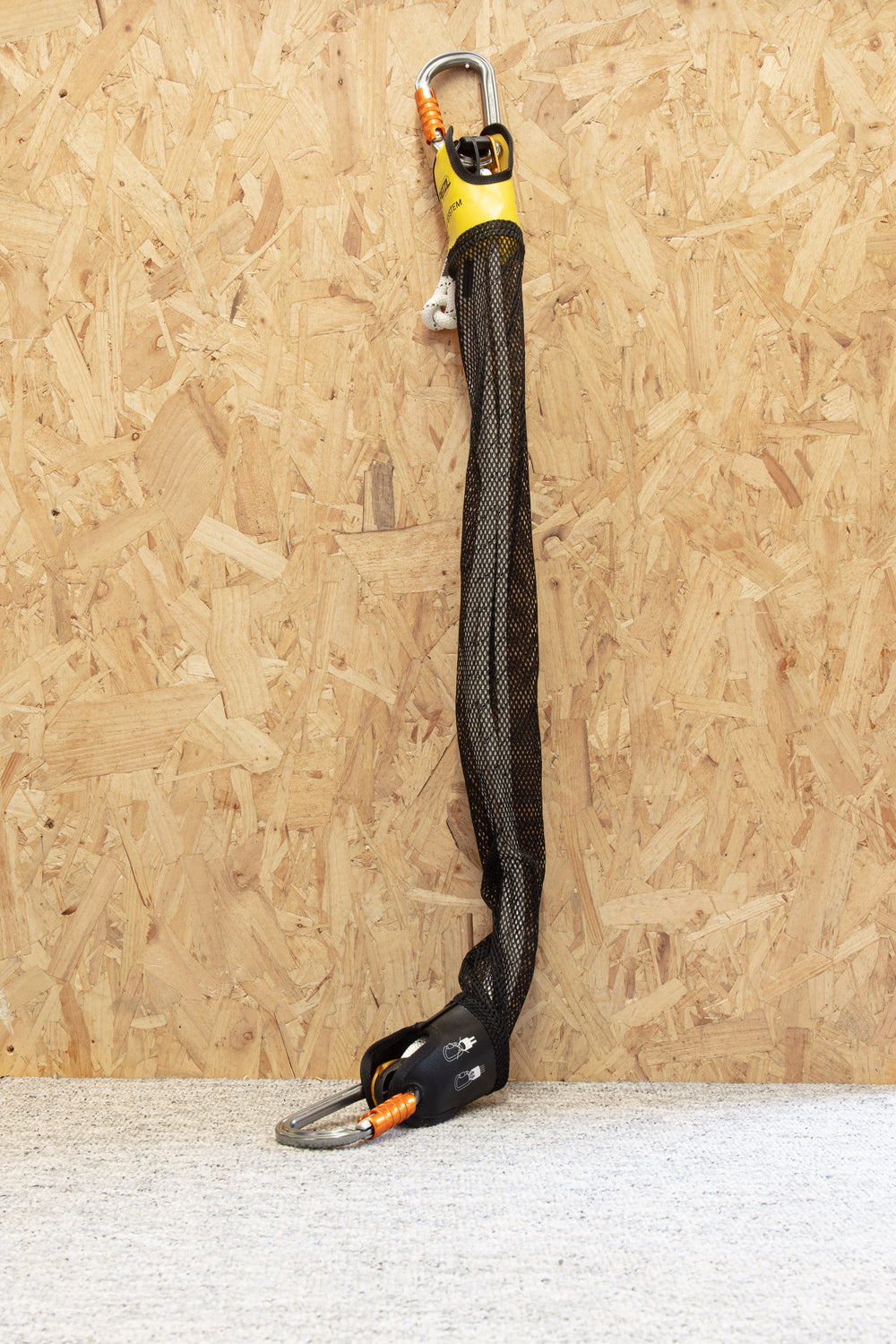

| 1m | Weight
610g
|
Deployed Length
1m
|
Collapsed Length
0.32m
|
Working Load
6 kN
|
Breaking Strength
16 kN
|
Efficiency
91%
|
Sheave Type
Sealed Ball Bearings
|
Rope Diameter
8mm
|
Conformity
EAC
|

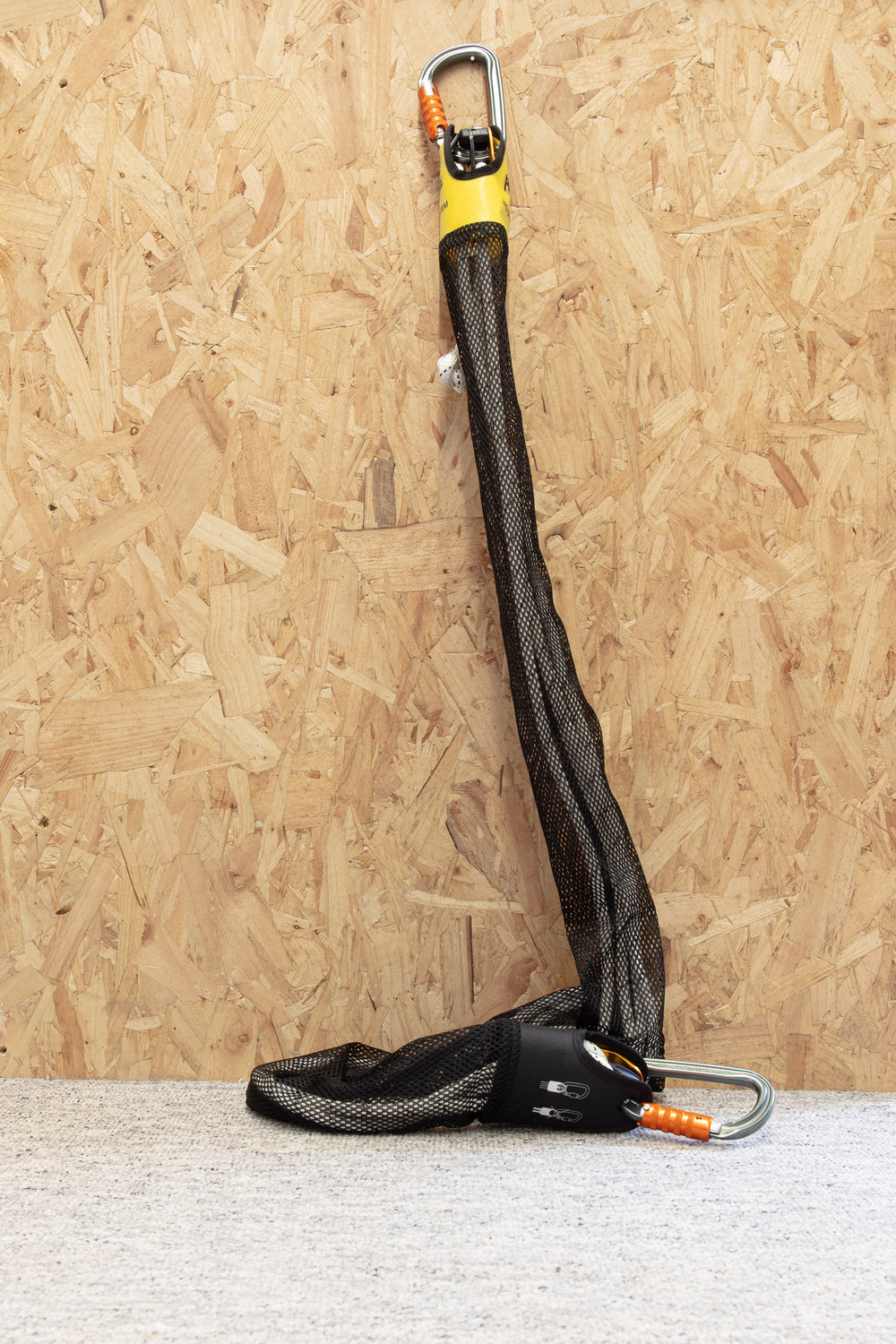

| 2m | Weight
805g
|
Deployed Length
2m
|
Collapsed Length
0.34m
|
Working Load
6 kN
|
Breaking Strength
16 kN
|
Efficiency
91%
|
Sheave Type
Sealed Ball Bearings
|
Rope Diameter
8mm
|
Conformity
EAC
|

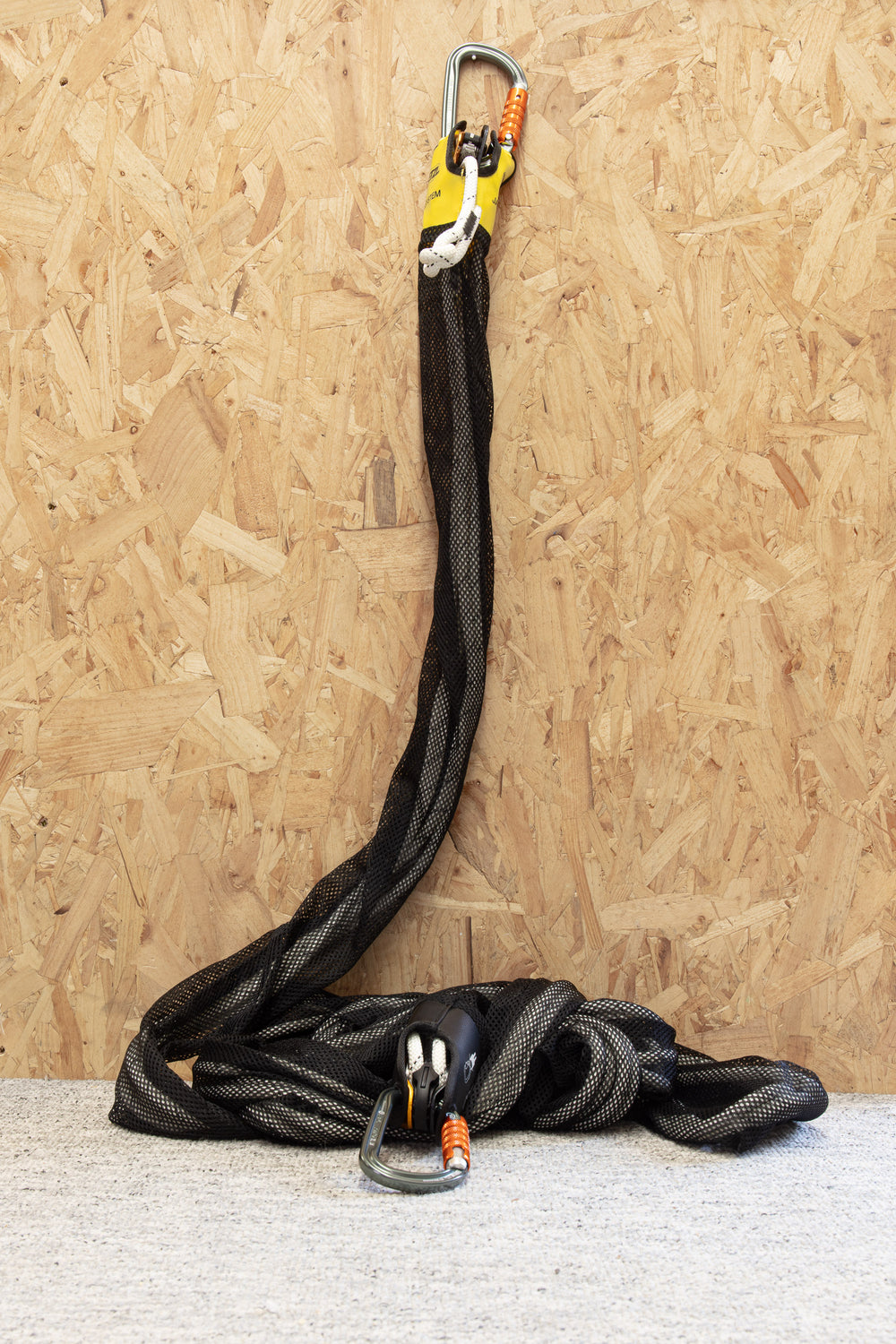

| 5m | Weight
1460g
|
Deployed Length
5m
|
Collapsed Length
0.4m
|
Working Load
6 kN
|
Breaking Strength
16 kN
|
Efficiency
91%
|
Sheave Type
Sealed Ball Bearings
|
Rope Diameter
8mm
|
Conformity
EAC
|
